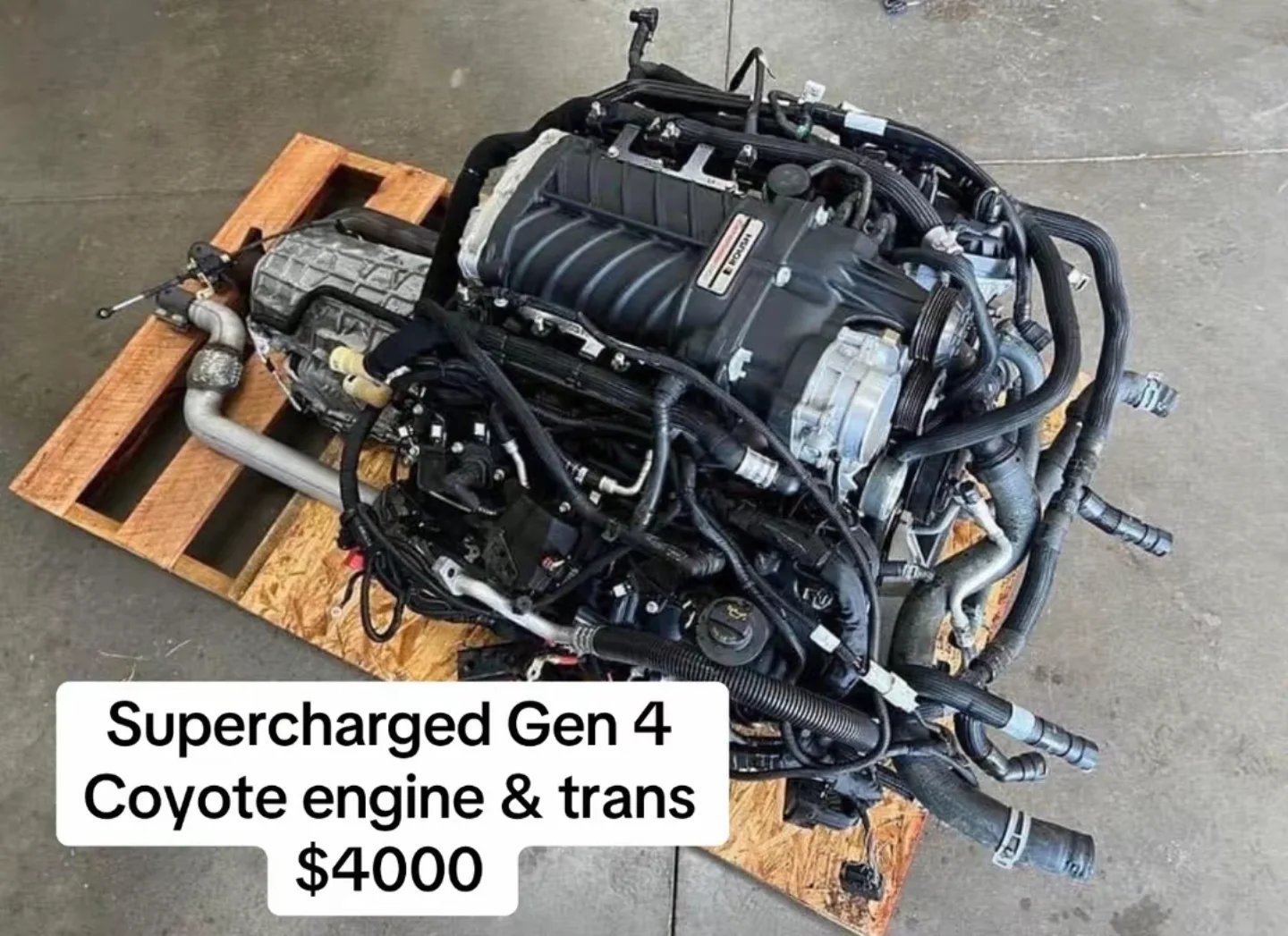

Supercharged Gen 4 Coyote engine

Gen 4 Coyote Supercharged Engine for Sale | Ford 5.0L GT500 V8 | McClain Auto Part

Product Overview

If you are searching for a Gen 4 Coyote supercharged engine for sale, McClain Auto Part carries genuine Ford 5.0L Gen 4 Coyote supercharged V8 engines sourced from verified low-mileage donor vehicles and inspected at our Cleveland, Ohio warehouse before anything ships. We have been supplying used performance engines to mechanics, builders, and enthusiasts across all 50 states since 2009. Every Gen 4 Coyote supercharged engine we sell is compression tested on all eight cylinders, supercharger assembly inspected and documented, dual-fuel injection system assessed, and backed by a 6-month warranty. Buyers choose a verified OEM Gen 4 Coyote supercharged engine over rebuilt alternatives because they get the complete factory Ford assembly with documented mileage, known supercharger condition, and direct fitment for GT500 replacement or performance swap applications at a price that makes sense.

Product Highlights

Genuine Ford 5.0L Gen 4 Coyote supercharged V8 engine
Eaton TVS 2.65L supercharger assembly included and documented
Dual-fuel port and direct injection system confirmed before shipping
Low mileage verified from donor vehicle records
Compression tested on all eight cylinders, actual numbers recorded
Supercharger shaft play, rotor condition, and snout integrity inspected
Oil condition checked for metal contamination and bearing distress
Coolant passages inspected for mixing or head gasket issues
Variable cam timing actuators and solenoids checked for condition
No audible knocking, ticking, or boost leak confirmed before packaging
6-month warranty against internal mechanical defects
Nationwide freight shipping within 1 to 3 business days
Real inventory in our Cleveland warehouse, not a brokered listing
VIN and application confirmation available before ordering

The Gen 4 Coyote Supercharged Platform

Ford introduced the Gen 4 Coyote in 2018 with the most significant internal upgrade the 5.0L Modular V8 platform had received since the original Coyote launch. The addition of port injection alongside the existing direct injection system created what Ford calls a dual-fuel system. This combination addresses the primary weakness of direct injection only engines, which is intake valve carbon buildup from the absence of fuel washing the valve backsides, while retaining the precision fuel delivery and power density advantages of direct injection at high load.

The revised cylinder head design on the Gen 4 improves airflow over the Gen 3 unit and contributes to the output gains the Gen 4 delivers in both naturally aspirated and supercharged configurations. In GT500 form with the Eaton TVS 2.65L supercharger, the Gen 4 Coyote produces 760 horsepower and 625 lb-ft of torque from 5.0 liters of displacement on pump gasoline.

The Gen 4 Coyote supercharged engine consequently represents the most capable version of Ford’s 5.0L platform and the benchmark against which modern American V8 performance is measured in the Mustang segment.

Gen 4 Versus Gen 3 Coyote

Understanding the differences between Gen 3 and Gen 4 Coyote engines matters for both replacement and swap applications. These two generations are not interchangeable in all respects and the distinction affects ECU requirements, fuel system planning, and component compatibility.

The Gen 3 Coyote introduced direct injection and plasma transferred wire arc cylinder liner coating when it launched in 2015. It is a strong engine but carries the intake valve carbon buildup vulnerability inherent to all direct injection only engines without port injection supplementation.

The Gen 4 adds port injection alongside direct injection, producing the dual-fuel system that addresses carbon buildup while improving fuel delivery precision across a wider range of operating conditions. The Gen 4 cylinder head flows more air than the Gen 3 design. The variable cam timing calibration is revised for improved response across the operating range.

For direct replacement applications, source the correct generation for your specific vehicle. For swap applications where the Gen 4 dual-fuel system and supercharged output are specifically targeted, confirm your ECU and harness solution supports the Gen 4 platform before ordering.

GT500 Supercharger System

The factory supercharged Gen 4 Coyote in GT500 trim uses an Eaton TVS 2.65L roots-type supercharger. TVS stands for Twin Vortices Series, referring to the four-lobe rotor pack design that produces more efficient compression than earlier three-lobe supercharger designs at equivalent displacement. The 2.65L displacement supercharger is sized specifically for the GT500 application and produces approximately 12 psi of boost in factory calibration.

The GT500 supercharger is a different unit from the smaller superchargers used on earlier Shelby GT350, Shelby GT500, and Roush supercharged Coyote applications. The intake manifold, supercharger mounting provisions, and ECU calibration on the GT500 application are specific to this supercharger size. Confirm your specific application and supercharger system before ordering to ensure the unit in inventory matches your replacement or build requirements.

Supercharger condition is documented separately on every unit before shipping. Shaft play, rotor condition, and snout integrity are assessed and reported before the order is finalized.

Technical Specifications

Specifications reflect the GT500 supercharged configuration. Contact us with your VIN before ordering to confirm the correct variant and application for your specific vehicle.

Vehicle Compatibility

Factory Supercharged Application

Ford Mustang GT500, 2020 to present, 5.0L supercharged Gen 4 Coyote with Eaton TVS 2.65L

Naturally Aspirated Gen 4 Application

Ford Mustang GT, 2018 to present, 5.0L naturally aspirated Gen 4 Coyote

GT500 vs Mustang GT Engine Note

The GT500 supercharged engine and the standard Mustang GT naturally aspirated engine are different configurations. The GT500 carries the Eaton TVS 2.65L supercharger, a revised intake manifold specific to the supercharger mounting, a lower compression ratio of 8.5:1 versus the higher naturally aspirated compression, and a GT500-specific ECU calibration managing boost, dual-fuel delivery, and supercharger bypass valve operation. These two configurations are not directly interchangeable without addressing supercharger, intake manifold, ECU, and fuel system differences. Confirm your specific application before ordering.

Common Swap Applications

The Gen 4 Coyote supercharged engine suits the following performance build applications:

Fox body Mustang Coyote swap builds targeting supercharged Gen 4 output
SN95 and S197 Mustang engine upgrade projects
Classic Mustang restomod builds where modern supercharged output is the specific goal
Custom chassis and tube frame builds where compact aluminum V8 dimensions are a priority
Non-Ford chassis builds targeting factory supercharged Coyote output in a lightweight package

For swap applications, confirm your ECU solution for the dual-fuel system, high-pressure direct injection fuel pump requirements, supercharger bypass valve wiring, oil pan clearance, and cooling circuit routing before ordering.

What Is Included

Standard With Most Supercharged Units

Complete Gen 4 Coyote 5.0L long block assembly
Eaton TVS supercharger assembly, condition documented
Supercharger inlet and intake manifold
Port injection fuel rails and injectors
Direct injection fuel rails and injectors
Valve covers
Oil pan
Timing cover
Variable cam timing actuators and solenoids

Available on Select Units or Upon Request

Engine wiring harness
ECU and PCM
Throttle body and sensors
Front accessory drive components
Supercharger heat exchanger and intercooler system
Starter and alternator

Not Included Unless Specifically Confirmed

Transmission
Flywheel or flexplate
Engine mounts
Exhaust manifolds

A Note on ECU and Wiring

The Gen 4 Coyote ECU manages the dual-fuel injection system, dual independent variable cam timing, supercharger bypass valve, and transmission integration simultaneously. For a direct factory replacement in the original car, your existing ECU and harness are typically reused with the replacement engine. For swap applications, dedicated Gen 4 Coyote swap harness solutions from suppliers including Speartech and Ron Francis are the correct path. Confirm your harness supports the dual-fuel system and supercharger bypass valve circuit before ordering the engine. Tell us your application when you call and we advise on what is available in current inventory.

Inspection Process

Every Gen 4 Coyote supercharged engine that ships from our Cleveland warehouse goes through a documented hands-on inspection. The dual-fuel injection system, supercharger assembly, and variable cam timing components on the Gen 4 require specific inspection attention that simpler naturally aspirated engines do not.

Compression Test

Every cylinder is compression tested before the unit ships. Actual pressure readings are recorded for all eight cylinders. Any cylinder showing significant variance from the others is flagged and the unit is assessed further before a listing decision is made.

Supercharger Inspection

The Eaton TVS supercharger assembly is inspected for shaft play indicating bearing wear, rotor condition, snout integrity, and bypass valve operation. The supercharger inlet port is inspected for debris ingestion evidence. Condition of both the supercharger housing and the snout drive system is documented separately before shipping.

Oil Condition Inspection

Engine oil is drained and inspected for metal particulate and contamination. Visible metal flakes or chunks indicate internal gear or bearing damage and disqualify a unit. Oil condition findings are documented before the order is processed.

Dual-Fuel System Inspection

Both the port injection and direct injection fuel systems are inspected. Port injection fuel rails and injectors are confirmed present and seal integrity assessed. Direct injection fuel rails and injectors are confirmed present and high-pressure system integrity assessed. The high-pressure fuel pump cam drive area is specifically checked given its role as a wear item on higher mileage units.

Coolant Passages

Coolant passages are inspected for oil contamination indicating head gasket compromise. The charge air cooling circuit connections are checked for leaks and integrity.

Variable Cam Timing Components

Dual independent VCT actuators and solenoids on both intake and exhaust camshafts are checked for condition and connector integrity. VCT solenoid condition affects variable cam timing function at all operating points and is specifically documented.

Audible Assessment

No audible knocking, ticking, or boost leak from the supercharger system is confirmed before packaging. Audible assessment results are documented before shipping.

Shipping Preparation

After passing inspection, the engine is drained of fluids, all open ports are plugged, and the assembly is mounted and secured on a certified freight pallet. The unit is wrapped and strapped before handoff to the carrier.

Installation Notes

Dual-Fuel System Planning

The Gen 4 Coyote dual-fuel system requires both a high-pressure direct injection pump and a standard port injection fuel supply. The high-pressure pump is cam-driven and is part of the engine assembly. The low-pressure port injection supply requires a standard returnless fuel pump sized for the port injection flow requirements. For swap applications, plan both fuel supply circuits before ordering the engine.

ECU and Wiring

The Gen 4 Coyote ECU is more complex than earlier Coyote generations due to the dual-fuel system management and supercharger bypass valve control. Swap harness suppliers including Speartech and Ron Francis produce dedicated Gen 4 Coyote harnesses. Confirm your harness solution supports the dual-fuel system, supercharger bypass valve circuit, and variable cam timing before ordering.

Cooling System

The GT500 supercharged Coyote uses two separate cooling circuits. The main engine cooling circuit handles the block and cylinder heads. A separate supercharger heat exchanger circuit cools the charge air before it enters the engine. Both circuits must be properly routed, sized, and fully bled before startup. Air pockets in the charge air cooling circuit reduce intercooler efficiency and produce heat soak symptoms under hard driving that are easy to misdiagnose as engine issues.

Transmission Compatibility

The GT500 was paired with the Tremec TR-3160 7-speed dual-clutch transmission in factory form. For swap builds, the Gen 4 Coyote uses a standard Ford Modular V8 bellhousing bolt pattern. Confirm bellhousing compatibility and input shaft dimensions for your specific transmission before ordering. T56, TR3650, and Getrag MT82 applications are common manual swap choices with appropriate adapter solutions.

Oil Pan Clearance

Confirm oil pan clearance for your specific chassis before ordering on any swap application. The factory GT500 oil pan profile suits the Mustang chassis. Swap-specific oil pans from aftermarket suppliers are available for Fox body, SN95, and other common Coyote swap platforms. Confirm pan clearance before the engine arrives to avoid holding the engine while sourcing a compatible pan.

Break-In Procedure

Follow Ford’s recommended break-in procedure for any fresh engine installation. Avoid sustained high-boost operation for the first several hundred miles. Change the oil after the first 500 miles to remove initial wear particles and inspect for any contamination that indicates installation issues before the engine goes into harder use.

Shipping Information

Gen 4 Coyote supercharged engines ship nationwide from our Cleveland, Ohio warehouse via freight carrier. Every engine is mounted on a certified pallet, all ports plugged, wrapped and strapped before handoff to the carrier.

Most orders are processed and ready for freight pickup within 1 to 3 business days of purchase confirmation and payment. You receive a tracking number as soon as the engine leaves our facility. Freight delivery to most continental US locations takes 3 to 7 business days after pickup.

Local pickup is available for buyers in the Cleveland, Ohio area by prior arrangement. Contact us before visiting to confirm the specific unit is ready and staged.

Contact us at +1(216) 230-5433 or sales@mcclainautopart.com before ordering to confirm current availability, exact mileage, supercharger condition documentation, dual-fuel system assessment, and included components on the current unit.

Warranty

Every Gen 4 Coyote supercharged engine from McClain Auto Part ships with a 6-month warranty against internal mechanical defects. Supercharger condition and dual-fuel system condition are documented and disclosed before the sale is processed so both parties understand exactly what is being sold.

The warranty covers internal mechanical failures resulting from defects present in the engine at the time of sale. It does not cover damage from boost leaks from improper installation, cooling system failures from insufficient circuit bleeding, oil starvation from installation errors, or damage from skipping recommended installation procedures.

If a covered mechanical issue arises within the warranty period, contact our team directly. We review the situation and work toward a fair resolution including a replacement engine, credit, or repair guidance depending on the specific circumstances. James McClain has honored warranty claims since 2009 without unnecessary complications.

Why Buy From McClain Auto Part

James McClain founded this business in Cleveland, Ohio in 2009 with one standard that has not changed: sell a part you would put in your own vehicle. That standard applies to every Gen 4 Coyote supercharged engine we list.

Every engine in our inventory is physically in our Cleveland warehouse before it is listed. We do not broker engines from other suppliers or list inventory we have not personally inspected. When you call us about a Gen 4 Coyote supercharged engine for sale you talk to someone who understands the dual-fuel system requirements specific to the Gen 4 platform, knows the GT500 supercharger inspection points that matter on a TVS assembly, and can give you accurate information about the exact unit in current inventory before you commit to the purchase.

We carry a 4.9 out of 5 star rating on Google from over 800 verified customer reviews. Our customers include Mustang owners doing direct GT500 replacements, performance shop owners handling restomod and swap builds, and serious Coyote swap builders targeting Gen 4 supercharged output in classic and custom chassis. The consistency of our inspection process and our warranty follow-through are the reasons they keep coming back.

Frequently Asked Questions

What Is the Gen 4 Coyote Engine

The Gen 4 Coyote is Ford’s 5.0L V8 introduced in 2018. It adds port injection alongside the existing direct injection system from the Gen 3, producing a dual-fuel setup that improves fuel delivery precision and eliminates intake valve carbon buildup. In GT500 supercharged form it produces 760 horsepower and 625 lb-ft of torque with the Eaton TVS 2.65L supercharger.

What Is the Difference Between the Gen 3 and Gen 4 Coyote

The Gen 4 adds port injection alongside direct injection, a revised cylinder head design for improved airflow, and updated variable cam timing calibration. The Gen 4 produces more output than the Gen 3 in both naturally aspirated and supercharged configurations and eliminates the intake valve carbon buildup issue inherent to direct injection only engines.

Does the Supercharged Version Include the Supercharger

Yes. The Eaton TVS supercharger assembly is included on supercharged units. Shaft play, rotor condition, and housing integrity are documented before shipping.

Is This Engine Compression Tested

Yes. Every cylinder is compression tested before the unit ships. Actual pressure readings are recorded on all eight cylinders and are available on request before purchase.

How Many Miles Are on the Engine

Mileage is verified from donor vehicle records before listing. We give you the exact mileage on the specific unit before you commit to the order. Contact us for current unit mileage.

Does It Include a Wiring Harness and ECU

Not automatically. Harness and ECU availability varies by unit. Tell us your specific application and we confirm what is available with the current unit in inventory.

Is This Suitable for a Swap Build

Yes. The Gen 4 Coyote supercharged engine is a capable and increasingly popular swap platform with mature supporting infrastructure. Confirm your dual-fuel system plan, ECU and wiring solution, both cooling circuits, oil pan clearance, and bellhousing compatibility before ordering.

What Does the Warranty Cover

Six months from purchase against internal mechanical defects. Supercharger condition and dual-fuel system condition are disclosed and documented before the sale. Contact us if a covered issue arises within the warranty period and we work toward a fair resolution.

What Transmission Is Compatible With This Engine

The GT500 uses the Tremec TR-3160 7-speed DCT in factory form. For swap builds the Gen 4 Coyote uses a standard Ford Modular V8 bellhousing pattern. T56, TR3650, and Getrag MT82 applications are common manual swap choices with appropriate adapter solutions.

How Is the Engine Shipped

Every engine ships on a secured freight pallet from our Cleveland warehouse with all ports plugged and the assembly fully protected for transit. Most orders are processed within 1 to 3 business days. You receive a tracking number when the engine ships.

Do You Ship Nationwide

Yes. We ship Gen 4 Coyote supercharged engines to all 50 states via freight carrier from Cleveland, Ohio.

Can I Pick Up the Engine Locally

Yes. Local pickup is available for buyers in the Cleveland, Ohio area by prior arrangement. Contact us before visiting to confirm the unit is ready and staged.

How Do I Place an Order

Call us at +1(216) 230-5433 or email sales@mcclainautopart.com. Provide your VIN and application details before ordering. We confirm availability, exact mileage, supercharger condition, dual-fuel system assessment, and fitment before processing your order.

Conclusion

A genuine Ford Gen 4 Coyote supercharged engine for sale from McClain Auto Part means a compression-tested, supercharger-documented, dual-fuel-system-inspected 5.0L V8 from a verified low-mileage donor vehicle shipped directly from our Cleveland warehouse. The most important steps before ordering are confirming your specific GT500 application, planning your dual-fuel system for swap builds, and confirming your ECU solution supports the Gen 4 platform. Call us at +1(216) 230-5433 or email sales@mcclainautopart.com with your VIN and application details. We confirm the correct variant, review current unit documentation including supercharger and dual-fuel system condition, and answer every question before you commit to the purchase.

Clean Gen 4 Coyote supercharged inventory moves consistently. If you have questions before ordering, ask them now.
