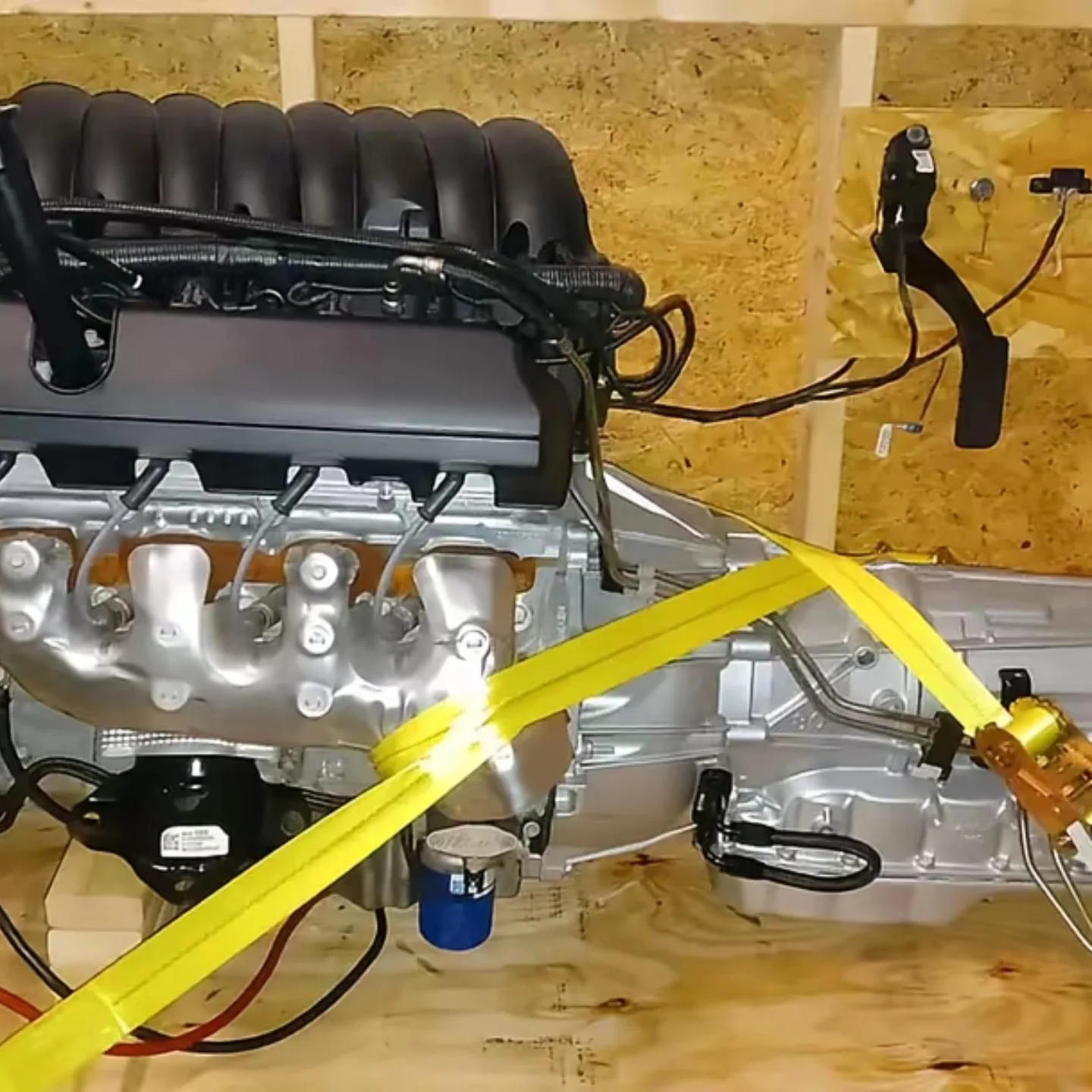

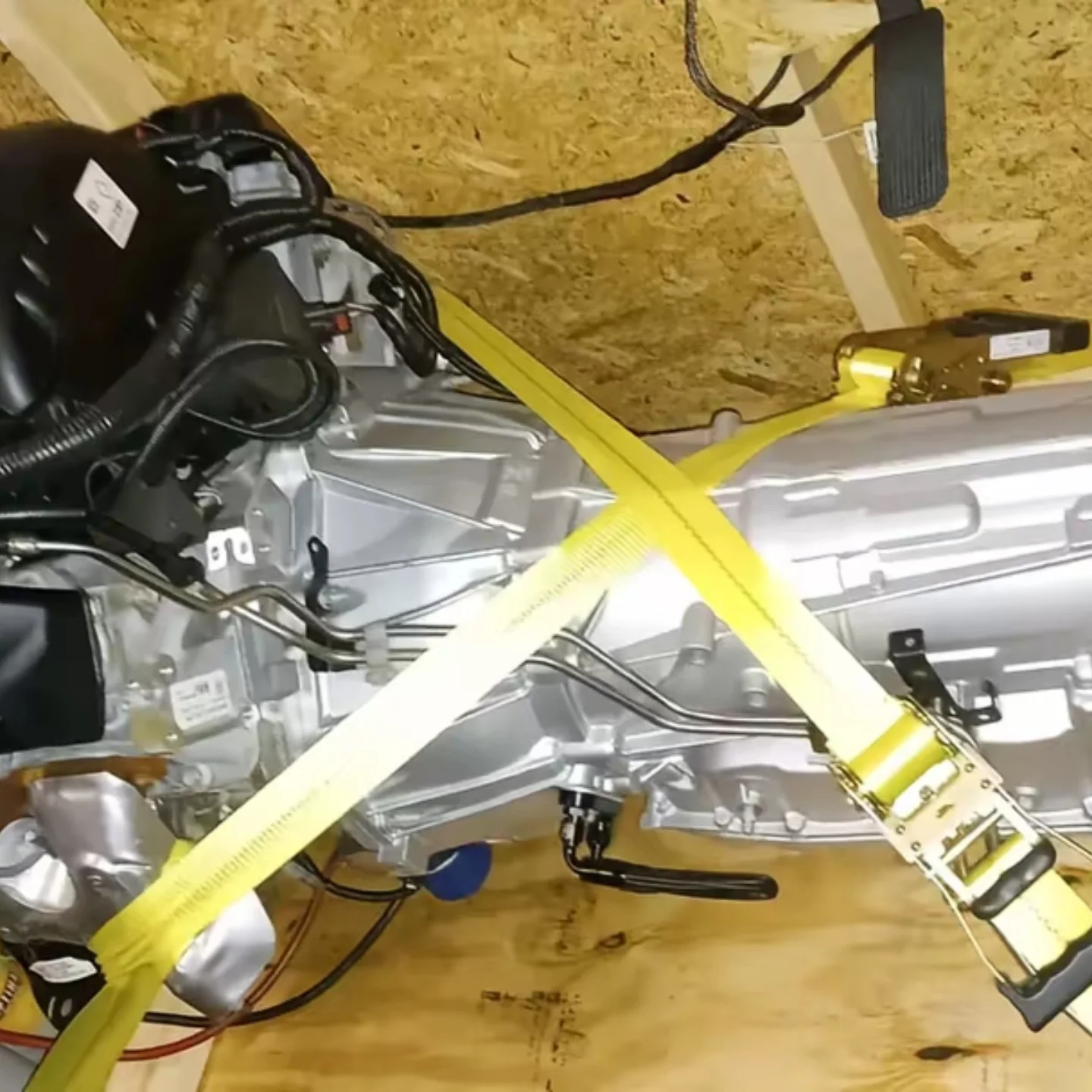

5.3L L84 Gen V with 6L80E transmission

What Makes the Gen V EcoTec3 Different

If you have researched the 5.3L replacement market, you already know there are two generations to choose from. The older Vortec replacement engine lineup, the LM7, LC9, and LMG, used port fuel injection and an iron or aluminum block depending on the variant. Those engines are proven and reliable. But they do not have the direct injection, dual independent variable valve timing, or cylinder deactivation refinements that came with the Gen V platform.

The Gen V Chevy truck engine introduced in 2014 model year trucks brought real improvements over the previous generation. Direct injection delivers fuel directly into the combustion chamber rather than the intake port. This improves combustion efficiency and contributes to better fuel economy without reducing displacement or output. Dual independent VVT on both camshafts optimizes the power curve across the RPM range. The result is a truck engine that tows and hauls the way GM truck owners expect while returning better fuel economy on the highway.

For daily-driven trucks and towing applications, the EcoTec3 platform hits the right balance. It is a naturally aspirated pushrod V8 with a proven service record across millions of factory applications. Owners who want to restore their truck to factory spec want this engine, not a step back to the previous generation.

Technical Specifications

Specs vary slightly by model year and RPO code. Call us with your year and application before ordering if you need to confirm the exact variant.

What Is Included

Included components vary by unit depending on what came with the donor vehicle. Here is what a typical package from McClain includes.

Standard With Most Units

• Complete long block assembly
• Intake manifold
• High-pressure direct injection fuel rails and injectors
• Valve covers
• Oil pan
• Variable valve timing actuators

Available on Select Units or by Request

• Engine wiring harness
• ECU, PCM
• Throttle body and associated sensors
• Front accessory components

We do not assume wiring and ECU are included unless we confirm them with you before the order ships. The EcoTec3 ECU calibration is specific to the direct injection and AFM system. If you need harness and ECU included, tell us your application when you call and we will confirm what is available in current inventory.

AFM lifter assembly condition is documented on every unit we inspect. If you are planning to delete AFM on the replacement engine, let us know before ordering.

Condition and Inspection

Every engine that ships from our Cleveland warehouse goes through a hands-on inspection. The EcoTec3 truck motor has specific components that require attention during inspection that older port-injected engines do not.

What We Check Before Every Unit Ships

• Compression test on all eight cylinders, actual numbers recorded
• Full visual inspection of block, heads, and external surfaces for cracks, leaks, or damage
• Oil condition checked for contamination or signs of extended service neglect
• Coolant passages inspected for signs of mixing or head gasket issues
• Mileage verified against donor vehicle documentation
• High-pressure fuel system inspected, injector seals, rail integrity, and pump condition noted
• AFM lifter valley inspected on select units, oil passage condition documented
• Variable valve timing actuators checked for condition
• No audible knocking, ticking, or unusual engine noise confirmed before packaging

AFM lifter failures are a documented issue on Gen V 5.3 engines at higher mileage. We inspect and document the AFM system condition on every unit before it ships. You know what you are buying before the order is processed.

Vehicle Compatibility

The GM truck engine was factory-fitted in the following vehicles:

• Chevrolet Silverado 1500, 2014 to 2018
• GMC Sierra 1500, 2014 to 2018
• Chevrolet Tahoe, 2015 to 2020
• Chevrolet Suburban, 2015 to 2020
• GMC Yukon and Yukon XL, 2015 to 2020
• Cadillac Escalade, 2015 to 2020

Before ordering, confirm your VIN, RPO code, and ECU calibration. Fitment depends on your specific build configuration, not the year and model alone. If you are replacing an older Vortec port-injected engine with a Gen V EcoTec3, that is not a direct swap. The fuel system and ECU are not compatible without additional work.

Call us with your VIN and we will confirm the right unit for your application.

Engine Swap and Replacement Notes

The Gen V Chevy truck engine is a strong choice for both factory replacements and modern swap projects. Here is what to plan for depending on your application.

Factory Replacement

For Silverado 1500 engine replacement or GMC Sierra 5.3 engine applications where the truck originally came with an L83 EcoTec3, a clean low-mileage unit drops in as a direct substitute. The ECU calibration, fuel system hardware, and sensors all match what the truck was built with. This is the most straightforward application.

Fuel System

The EcoTec3 runs a high-pressure direct injection system. If you are doing a swap into a non-factory chassis, you need a compatible high-pressure fuel pump and returnless fuel system capable of supporting DI pressures. This is a significant difference from older LS or Vortec platforms that ran low-pressure port injection.

ECU and Wiring

The Gen V ECU is specific to the direct injection and AFM system. A swap into a non-factory chassis requires either the factory harness adapted to the new application or a standalone ECU solution that supports direct injection. This is not a traditional plug-in LS swap.

Transmission

The L83 was paired with 6-speed automatics in factory applications. Transmission compatibility depends on your specific swap, bellhousing, and torque converter matching. Standard GM bolt patterns apply.

Cooling System

Use the factory-spec thermostat and confirm coolant passage routing before startup. The aluminum block 5.3 V8 runs efficiently but proper coolant flow matters on any swap or replacement build.

If you have questions about supporting components for your specific application, call us before ordering.

Shipping and Warranty

Shipping

We ship from Cleveland, Ohio to all 50 states. Every engine ships on a secured freight pallet, fully protected for transit. Most orders are processed and ready to ship within 1 to 3 business days after confirmation and payment. You receive a tracking number once the engine leaves our facility.

Warranty

Every engine we sell comes with a 6-month warranty against internal mechanical defects. AFM system condition is disclosed and documented before the order is processed. If a covered mechanical failure occurs within the warranty period, contact us. We work toward a fair resolution, whether a replacement engine, credit, or repair guidance depending on the situation.

We have been honoring warranty claims since 2009.

About McClain Auto Part

We have been sourcing and selling used GM engines since 2009. Over 10,000 engines shipped. Rated 4.9 out of 5 stars across 800 or more verified Google reviews. Every engine we sell is physically in our Cleveland, Ohio warehouse, inspected by our team, and ready to ship.

We are not a listing aggregator or broker. When you call us about a Gen V Chevy truck engine, you are talking to someone who has handled hundreds of these units, understands the direct injection and AFM considerations specific to the EcoTec3 platform, and can give you accurate information about the exact engine in stock.

Frequently Asked Questions

What Vehicles Use This Gen V 5.3 Engine?

Factory applications include the Silverado 1500, Sierra 1500, Tahoe, Suburban, Yukon, Yukon XL, and Cadillac Escalade from 2014 to 2020 depending on model. Confirm your VIN and RPO code before ordering.

Is This a Direct Replacement for My Silverado or Sierra?

For 2014 to 2018 Silverado 1500 engine replacement and GMC Sierra 5.3 engine applications originally equipped with the L83 EcoTec3, yes. Confirm your RPO code and ECU calibration first. If your truck originally came with an older Vortec engine, additional fuel system and ECU work is required.

Is the Engine Tested Before Shipping?

Yes. Every unit goes through compression testing on all eight cylinders, visual inspection, oil condition check, mileage verification, and direct injection system inspection at our Cleveland facility before packaging.

How Many Miles Are on the Engine?

Under 80,000 miles, verified from donor vehicle records. We give you the exact mileage on the specific unit before you commit to the order.

Does It Come With Accessories or Wiring?

Most units include the intake manifold, direct injection rails and injectors, valve covers, and oil pan. Wiring harness and ECU are available on select units. Confirm at time of order.

What Does the Warranty Cover?

Six months from purchase against internal mechanical defects. AFM system condition is documented and disclosed before the sale. Contact us if a covered issue arises.

Is This an LT-Based Engine Platform?

Yes. The LT-based 5.3 engine is the Gen V architecture GM introduced in 2014. It shares the basic LT platform but uses the EcoTec3 direct injection and AFM system specific to truck and SUV applications.

Ready to Order

If you are looking for a Gen V Chevy truck engine, a direct Silverado 1500 engine replacement, or a clean GMC Sierra 5.3 engine for a rebuild or swap project, call us. Confirm your VIN and application, and we will tell you exactly what we have in stock. Mileage, AFM condition, included components, and shipping timeline.

Clean EcoTec3 inventory moves consistently. If you have questions before committing, ask them.

McClain Auto Part. Cleveland, Ohio. In business since 2009.
